Pneumatic Cylinders » Compact

Compact Cylinder Specifications

  • Compact Pneumatic Cylinder

Our selection of pneumatic cylinders includes double and single acting cylinders with or without magnets. While we are confident that we have a compact pneumatic cylinder to meet your requirement, each compact pneumatic cylinder offers a unique array of benefits depending on the model.

NACQ Series

  • Bore Sizes: 12, 16, 20, 25, 32, 40, 50, 63, 80 and 100mm
  • Operating Pressure: 22-145 PSI
  • Temperature Rating: -20-70 Deg C

NACF Series

  • Bore Sizes: 9/16, ¾, 1-1/16, 1-1/2, 2, 2-1/2, 3, and 4”
  • Operating Pressure: 22-145 PSI
  • Temperature Rating: -5-160 Deg F (-20-70 Deg C)

Strokes and ports for the NACQ Series and the NACF Series depend on bore size. Contact a UPC expert for more information on our full line of compact cylinders.

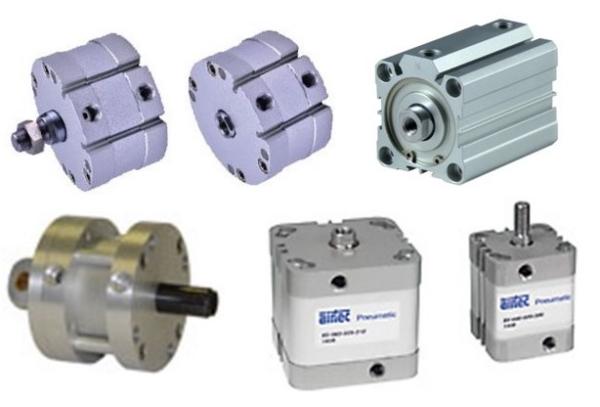

Compact Pneumatic Cylinders

Compact pneumatic cylinders use compressed air to produce force in a linear motion and provide a quieter operation than electric motors and hydraulics. Universal Power Conversion stocks compact cylinders from global suppliers of pneumatic equipment and offer innovative compact cylinder models including the NACQ Series and the NACF Series. These durable and compact cylinders are offered with or without a magnet to meet your requirements.

Browse the product selection below to place an order or request a quote. If you have questions regarding our other pneumatic components, please contact our experts for help selecting a pneumatic cylinder.

NACQ AirTAC Compact Cylnder
NACQ Series
AirTAC NACF Compact Cylinder
NACF Series

Contact Universal Power Conversion Today for Pneumatic Cylinders and more

Contact UPC for more information about our compact pneumatic cylinders.
