Dot Peen And Scribing Machines
Learn more about the Gravotech DOT peen station capabilities below, view industries and applications or Contact a UPC expert and let us help with any questions.
Gravotech DOT Peen Marking And Scribing Machine Capabilities
IMPACT DOT Peen Station
The Impact dot peen engraver is a standalone metal engraving machine easy to configure and master. This engraver is available with pneumatic and electromagnetic power sources. It can be used on a variety of materials, from metals to plastics.- Marking Area: 100 x 120 mm (3.94 x 4.72'')
XF510p (Pneumatic) Integrable DOT Peen
The XF510p pneumatic dot peen marking machine is our smallest and fastest marker that creates markings to our high precision standards. With a marking speed of 12 characters in one second, this marker is ideal for applications requiring short cycle times and in uninterrupted production lines.- Marking Area: Cp: 50 x 20 mm (1.97 x 0.79'') Sp: 100 x 80 mm (3.94 x 3.15'') Dp: 200 x 80 mm (7.87 x 3.15'')
XF510m (Electromagnetic) Integrable DOT Peen
This electromagnetic dot peen marking machine offers unmatched precision for marking Data Matrix codes on metals and plastics. It features automatic density adjustment and can mark the same place with up to 10 impacts. This model is perfect for marking any type of 2D code, Data Matrix, QR code engraving, UID, GS1, Unicode characters.- Marking Area: Cm: 50 x 20 mm (1.97 x 0.79'') Sm: 100 x 80 mm (3.94 x 3.15'') Dm: 200 x 80 mm (7.87 x 3.15'')

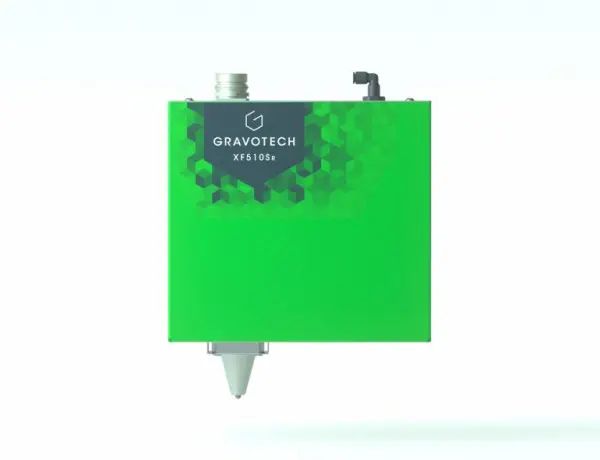

XF510r (Scribing) Integrable DOT Peen
The XF510r marking system delivers direct part marking on your parts while reducing noise. Quiet enough to meet the noise controls in the strictest standards, it is the industrial marker for steel marking, traceability marking, or production line marking.- Marking Area: Cr: 40 x 50 mm (1.6 x 2'') Sr: 80 x 50 mm (3.1 x 2'') Dr: 160 x 50 mm (6.3 x 2'')
SV530 Integrable Scribing Machine
The SV530 scribing machine is designed for sharp and deep marking of up to 0.3mm depth on metals, making it perfect for VIN marking. It is integrable in any automated or manually operated product line, performs silent marking and is designed to operate in the toughest environments.- Marking Area: 20 x 40 mm (4.72 x 1.57'')
XF530 Deep Marking Machine
As the name indicates, the XF530 (Deep Marking) creates durable tamper-proof marks on all metals, making it ideal for marking and identifying parts that will withstand harsh conditions. It is also ideal for direct marking before part processing and for anti-counterfeiting markings.- Marking Area: 200 x 50 mm (7.9 x 2'')
DOT Peen Marking For Multiple Applications
- Automotive: VIN marking, part traceability.
- Aerospace: Marking for metal parts without compromising integrity.
- Industrial Manufacturing: Part identification, branding, and traceability.
- Defense: Durable markings on sensitive parts.
