Gravotech Scribing Styluses
For Precision Marking on Metal and Plastic Surfaces
Gravotech Scribing Styluses pair with Gravotech’s high quality Dot Peen Marking Machines to create permanent precision marking on metal, plastics and other surfaces. Universal Power Conversion supplies Gravotech Styluses, for Gravotech pneumatic dot peen marking machines and electromagnetic dot peen marking machines. Gravotech scribing styluses are reliable, durable and can meet your diverse marking needs, including deep marking, VIN marking, and smooth metal applications. Our selection includes Gravotech pneumatic and mechanical Styluses, Stylus Pins and Repair Kits.Learn more about the Gravotech styluses below, view industries and applications or Contact a UPC expert and let us help with any questions.
Gravotech Scribing Styluses, Pins and Repair Kits
Complete Styluses:
- NDA22-110: Designed for deep marking on smooth metal with a diamond tip.
- ND22-110: Tailored for deep marking on smooth metal.
- VD22-110: Ideal for VIN marking on smooth metal with a diamond tip.
- V22-110: General-purpose stylus for various applications.
- V22-130: Specialized for low burr VIN marking (Request for Quote).
Pin-Only Options:
- Corresponding pin-only versions of NDA22-110, ND22-110, VD22-110, and V22-110 for users who need replacements.

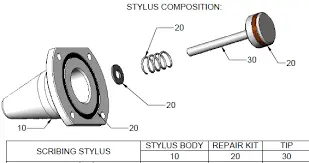

Repair Kits:
- N2 Repair Kit for XF510 models.
- V2 Repair Kit for SV510 models.
Not sure where to start? Contact our experts for help selecting a product.
Gravotech Scribing Styluses for Precision Dot Peen Marking Systems
XF510r Integrable Scribing MachineThe XF510r delivers direct part marking on your parts and features a scribing marking tool for reduced noise. Quiet enough to meet the noise controls in the strictest standards, it is the industrial marker for steel marking, traceability marking, or production line marking.
IMPACT Dot Peen Station
The IMPACT DOT Peen Station features touch and mark capabilities for easy engraving, I-Sense functionality for improved marking accuracy and dynamic dot control. It can create marks on many materials, from metal to plastics.
SV510 Series
The SV510 series engraves deep characters of up to 0.3 mm depth on metals and other materials, making it perfect for VIN marking.
XF530 (Deep Marking)
The XF530 scribing machine forms tamper-proof marks on all metals of up to 0.5 mm depth under short cycle times. The XF530 large marking area of 200 mm (7.9 in) X 50 mm (2 in) is specially adapted to engrave large characters.
Gravotech Pneumatic And Electromagnetic Scribing Styluses
XF510p (Pneumatic)The XF510p (Pneumatic) is the fastest pneumatic dot peen marking machine on the market, capable of a marking speed of 12 characters in one second. This compact system allows for precision marking with minimal maintenance.
XF510m (Electromagnetic) Series
The XF10m Series Integrable Dot Peen Machine offers unmatched precision for marking Data Matrix codes on metals and plastics and VIN plate engraving. It features automatic density adjustment and can mark the same place with up to 10 impacts. Compatible styluses and pins include: M1L 90°, M1C 90°, M1X 90°.
Stylus Industrial Applications
- Automotive: VIN marking, part traceability and manufacturing compliance
- Aerospace: Marking for metal parts for safety and certification without compromising integrity.
- Industrial Manufacturing: Part identification, branding, and traceability for tools and machinery.
- Defense: Durable markings on sensitive parts.
- General Manufacturing: Including heavy-duty marking for precision requirements.
