NACF Series

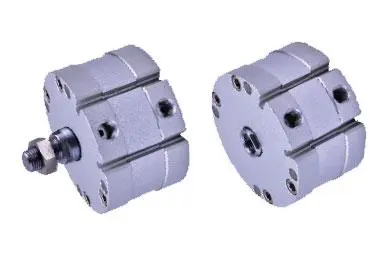

AirTAC NACF Series compact cylinders have a structure that effectively saves installation space. These round pneumatic cylinders come in double acting, double rod, single acting extend, and single acting return styles. Models available with or without magnets. Additional specifications include:
- Bore Sizes: 9/16, ¾, 1-1/16, 1-1/2, 2, 2-1/2, 3, and 4”
- Strokes from 1/4 to 4 depending on the bore size
- Ports: 10-32 UNF, 1/8 NPT, ¼ NPT, and 3/8 NPT, depending on the bore size
- Operating Pressure: 22-145 PSI
- Temperature Rating: -5-160 Deg F (-20-70 Deg C)
