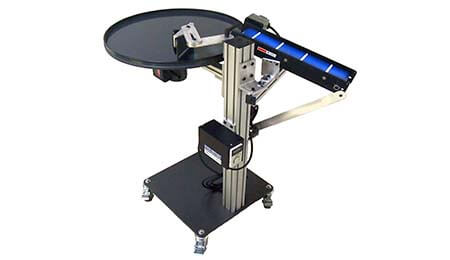

The Uni-Mate® 80-024 is a compact-sized labor-saver during short time periods where the operator is attending other tasks. Small parts are kept separated and undamaged for later offloading.
Conveyor Features
Choice of 4 conveyor dimensions:
— 4″ x 36″
— 6″ x 36″
— 4″ x 48″
— 6″ x 48″
2.50″ high conveyor frame with integral 0.70″ high side guides
Integral left-side mount gearmotor, 1/18 hp, 115/60 VAC 3 fpm fixed speed
Motor/belt can stop-start in synch with table on a single cycle timer
1.25″ dia. pulleys, crowned aluminum with double-sealed long-life bearings
Blue chemical & cut resistant belt with H0 (0.16″ high) cleats, 6″ spacing
Up to 45-degree adjustment range on connection to rotary table
