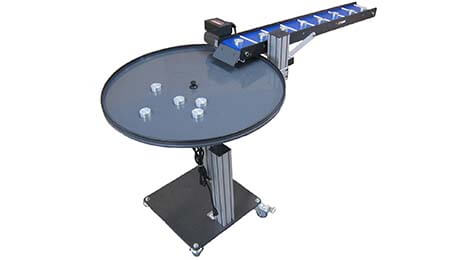

Uni-Mate 80-032

uni-mate-032
Unattended & Overnight Operation with Labor Savings

The Uni-Mate® 80-032 is a mid-sized labor-saver for collecting and protecting parts over extended unattended time periods. This unit can allow an on-site operator to attend other tasks, or can it be operate overnight to accumulation of small parts that need to be separated and protected.

Conveyor Features

  • Choice of 4 conveyor dimensions:
    — 4″ x 36″
    — 6″ x 36″
    — 4″ x 48″
    — 6″ x 48″
  • 2.50″ high conveyor frame with integral 0.70″ high side guides
  • Integral left-side mount gearmotor, 1/18 hp, 115/60 VAC 3 fpm fixed speed
  • Motor/belt can stop-start in synch with table on a single cycle timer
  • 1.25″ dia. pulleys, crowned aluminum with double-sealed long-life bearings
  • Blue chemical & cut resistant belt with H0 (0.16″ high) cleats, 6″ spacing
  • Up to 45-degree adjustment range on connection to rotary table

Table Features

  • 32″ diameter PVC top
  • 10.5″ – 42″ height adjustment range
  • Gearmotor 1/12 hp, 60W BLDC
  • 1-3 RPM variable-speed rotation
  • Cycle /index timer
  • Locking steel casters
  • Diverter arm & cushion
  • 19.5″ square steel base
  • Load capacity: 100 lbs
  • Unit weight: 120 lbs
